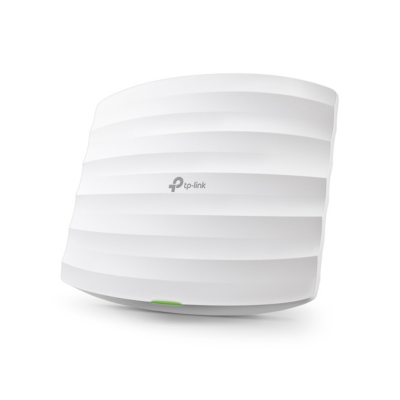

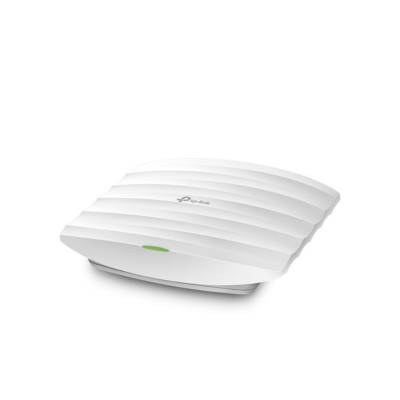

EAP225
AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
Highlights
- Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
- Cloud centralized management and Omada app for ultra convenience and easy management
- Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
- Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
- Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
Learn more about Controller Software
| HARDWARE FEATURES | |
|---|---|

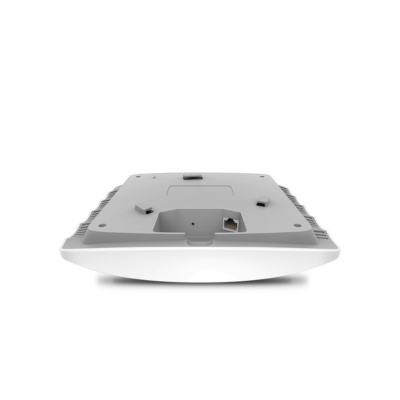

| Interface | Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE and Passive PoE *) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Max. Power Consumption | EU: 10.5 W US: 12.6W |
| Dimensions ( W x D x H ) | 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) |
| Antenna | 3 Internal Omni * 2.4GHz: 4dBi 5GHz: 5dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Hardware Watch Dog | Yes |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate |
5GHz:Up to 867Mbps |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Band Steering Load Balance MU-MIMO * Airtime Fairness * Beamforming * Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Transmission Power | CE: ≤20dBm(2.4GHz,EIRP) ≤23dBm(5GHz,EIRP) FCC: ≤24dBm(2.4GHz) ≤22dBm(5GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller • Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) |
| Cloud Access | Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 Passive PoE Adapter Power Cord Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
