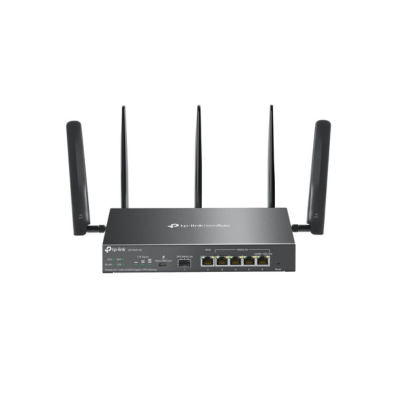

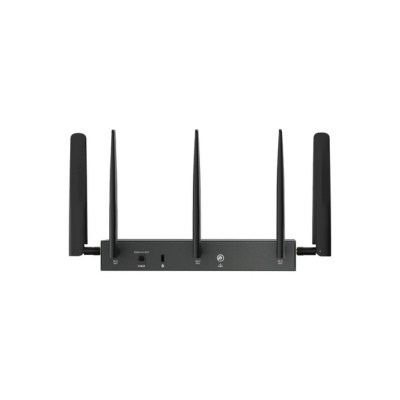

ER706WP-4G

Omada 4G+ Cat6 AX3000 Gigabit VPN Router

Highlights

      • Support 4G+ Cat6: Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&T’s Text & Data plans in the US).
      • AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
      • 6 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
      • 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
      • Centralized Management: Cloud access and the Omada app for easy management.
      • Omada Mesh: Seamlessly connects to EAPs that support mesh technology.
      • High-Security VPN: IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN.

      Learn more about Omada Cloud SDN>​

      4G
      Network Type

      LTE Band of EU:
      • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
      • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
      • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)

      Carrier Aggregation of EU:
      B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
      B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
      B5+B5/B7/B38/B40/B41
      B7+B7/B8/B20/B28/B32
      B8+B32/B38/B40/B41
      B20+B32/B38/B40
      B28+B32/B38/B40/B41
      B38+B38
      B40+B40
      B41+B41

      LTE Band of US:
      • 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71
      (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz)
      • 4G LTE-TDD: B41/B48 (2500/3600 MHz)

      Carrier Aggregation of US:
      B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71
      B4+B4/B5/B7/B12/B13/B29/B30/B71
      B5+B5/B7/B25/B30/B41/B66
      B7+B7/B12/B66
      B12+B12/B25/B30/B66
      B13+B66
      B14+B30/B66
      B25+B25/B26/B41
      B26+B41
      B29+B30/B66
      B30+B66
      B41+B41
      B48+B48
      B66+B66/B71
      SIM Type 1× Nano SIM Card
      Frequency • Downlink: 300 Mbps;
      • Uplink: 50 Mbps
      SECURITY
      DPI Application control via DPI / Updated app library
      IDS/IPS Signature-based IPS/IDS threat detection
      Access Control Source/Destination IP Based Access Control
      Filtering • Web Group Filtering†
      • URL Filtering
      • Web Security†
      ARP Inspection • Sending GARP Packets
      • ARP Scanning†
      • IP-MAC Binding
      Attack Defense • TCP/UDP/ICMP Flood Defense
      • Block TCP Scan (Stealth FIN/Xmas/Null)
      • Block Ping from WAN
      HARDWARE FEATURES
      Interface • 1 Gigabit SFP WAN/LAN Port
      • 1 Gigabit WAN Port
      • 4 Gigabit LAN/WAN Ports
      Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
      • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
      • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
      Button Reset Button
      Power Supply 12VDC / 2A Power Adapter
      Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps
      • 5 GHz: 2402 Mbps (HE160)
      Flash 128 MB NAND
      DRAM 512 MB DDR4
      LED SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
      Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
      Antenna • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
      • LTE: Two 4.0dBi omnidirectional detachable antennas

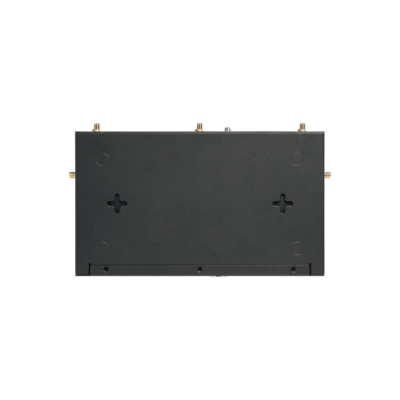

      Mounting Desktop/Wall-Mounting
      Max. Power Consumption EU: 15.4W
      US: 17.3W
      PERFORMANCE
      IPS Throughput • TCP: 229 Mbps
      • UDP: 188 Mbps
      DPI Throughput • TCP: 933 Mbps
      • UDP: 927 Mbps
      GRE • Unencrypted: 545.3Mbps
      • Encrypted: 282.6Mbps
      WireGuard VPN 387.7Mbps
      Concurrent Session 150,000
      New Sessions /Second 5,100
      NAT (Static IP) 947.1Mbps / 940.1Mbps
      NAT(DHCP) 949.2Mbps / 941.1Mbps
      NAT(PPPoE) 942.6Mbps / 941.1Mbps
      NAT (L2TP) 875.4Mbps / 892.0Mbps
      NAT (PPTP) 881.2Mbps / 895.8Mbps
      IPsec VPN Throughput • ESP-SHA1-AES256: 652.2Mbps
      • ESP-SHA256-AES256: 654.4Mbps
      • ESP-SHA384-AES256: 646.5Mbps
      • ESP-SHA512-AES256: 670.5 Mbps
      OpenVPN 115.5Mbps
      L2TP VPN Throughput • Unencrypted: 990.0Mbps
      • Encrypted: 475.0Mbps
      PPTP VPN Throughput • Unencrypted: 1177.9Mbps
      • Encrypted: 177.4Mbps
      SSL VPN Throughput 122.5Mbps
      66 Byte Packet Forwarding Rate 1,453,489 pps / 1,453,488 pps
      1,518 Byte Packet forwarding rate 81274 pps / 91275 pps
      WIRELESS FEATURES
      Advanced Features • Seamless Roaming
      • Mesh (with EAP that supports Mesh)
      • OFDMA
      • Beamforming
      • MU-MIMO
      • Rate Limit: Based on SSID/Client
      • Airtime Fairness
      • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
      • Multiple SSIDs: 16 in total (8 per radio)
      Guest Network Support
      BASIC FUNCTIONS
      WAN Connection Type • Static IP
      • Dynamic IP
      • PPPoE (supports MRU Configuration)
      • PPTP
      • L2TP
      MAC Clone Modify WAN Address
      DHCP • DHCP Server
      • DHCPv6 PD Server (only in Standalone Mode)
      • DHCP Options Customization
      • DHCP Address Reservation
      • Multi-IP Interfaces
      • Multi-Net DHCP
      SMS Receive / Send SMS
      IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
      VLAN 802.1Q VLAN
      IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
      Advanced Features
      Access Control IP/Port/Protocol/Domain Name Filtering
      Advanced Routing • Static Routing
      • Policy Routing
      • RIP†
      • OSPF†
      Bandwidth Control IP-Based Bandwidth Control
      Load Balance • Intelligent Load Balance
      • Application Optimized Routing
      • Link Backup(Timing, Failover)
      • Online Detection
      NAT • One-to-One NAT
      • Multi-Net NAT
      • Virtual Server
      • Port Triggering†
      • NAT-DMZ
      • FTP/H.323/SIP/IPSec/PPTP ALG
      • UPnP
      Session Limit IP-Based Session Limit
      VPN
      GRE Only in Standalone Mode
      SSL VPN 50 Tunnels
      IPsec VPN • 100 IPSec VPN Tunnels
      • LAN-to-LAN, Client-to-LAN
      • Main, Aggressive Negotiation Mode
      • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
      • IPsec Failover
      • IKE v1/v2
      • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
      • NAT Traversal (NAT-T)
      • Dead Peer Detection (DPD)
      • Perfect Forward Secrecy (PFS)
      PPTP VPN • PPTP VPN Server
      • PPTP VPN Client (10)△
      • 50 Tunnels
      • PPTP with MPPE Encryption
      L2TP VPN • L2TP VPN Server
      • L2TP VPN Client (10)△
      • 50 Tunnels
      • L2TP over IPSec
      OpenVPN • OpenVPN Server
      • OpenVPN Client (5)△
      • 55 OpenVPN Tunnels
      • “Certificate + Account” Mode
      • Full Mode
      WireGuard VPN • 20 Tunnels
      AUTHENTICATION
      Web Authentication • No Authentication
      • Simple Password§
      • Hotspot (Local User / Voucher§ / SMS§ / Radius§)
      • External Radius Sever
      • External Portal Sever§
      • LDAP
      Management Features
      Omada App Yes.
      Centralized Management • Omada Cloud-Based Controller
      • Omada Hardware Controller (OC300)
      • Omada Hardware Controller (OC200)
      • Omada Software Controller
      Cloud Access Yes.
      Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
      Maintenance • Web Management Interface
      • Remote Management
      • Export & Import Configuration
      • SNMP v1/v2c/v3
      • Diagnostics (Ping & Traceroute)†
      • NTP Synchronize†
      • Port Mirroring
      • CLI (only in Standalone Mode)
      • Syslog Support
      Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
      Management Features • Automatic Device Discovery
      • Intelligent Network Monitoring
      • Abnormal Event Warnings
      • Unified Configuration
      • Reboot Schedule
      • Captive Portal Configuration
      OTHERS
      Certification CE, FCC, RoHS
      Package Content • ER706W-4G
      • Power Adapter
      • Quick Installation Guide
      System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
      • MAC OS, NetWare, UNIX or Linux
      Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
      • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
      • Operating Humidity: 10% to 90% non-condensing
      • Storage Humidity: 5% to 90% non-condensing
