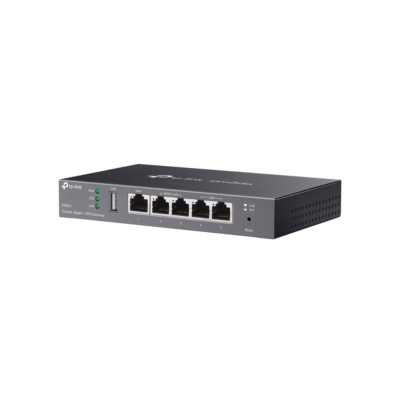

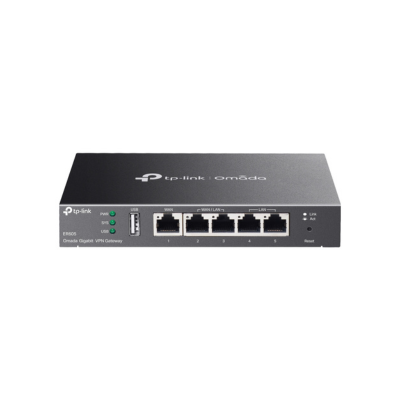

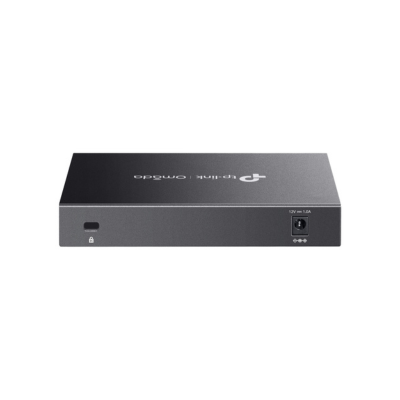

ER605

SafeStream™ Gigabit Multi-WAN VPN Router

Highlights



    • Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.
    • Centralized Management: Cloud access and Omada app for convenience and easy management.
    • Five Gigabit Ports: High-speed wired connectivity.
    • Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
    • One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.‡
    • Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
    • Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

    Learn more about Omada Cloud SDN>​

    SECURITY
    Access Control Source/Destination IP Based Access Control
    Filtering • WEB Group Filtering§
    • URL Filtering
    • Web Security§
    ARP Inspection • Sending GARP Packets§
    • ARP Scanning§
    • IP-MAC Binding
    Attack Defense • TCP/UDP/ICMP Flood Defense
    • Block TCP Scan (Stealth FIN/Xmas/Null)
    • Block Ping from WAN
    HARDWARE FEATURES
    Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q
    • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN
    Interface • 1 Gigabit WAN port
    • 2 Gigabit LAN/WAN ports
    • 2 Gigabit LAN ports
    • 1 USB2.0(supports USB LTE dongle‡)
    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
    • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
    • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
    Fan Quantity Fanless
    Button Reset Button
    Power Supply External 12V/1A DC Adapter
    PoE Budget –
    Flash 128 MB NAND
    DRAM 256 MB DDR
    LED PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
    Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
    Protection 4 kV surge protection
    Enclosure Steel
    Mounting Desktop/Wall-mount
    Max. Power Consumption 7.94 W
    PERFORMANCE
    DPI Throughput TCP: 905 Mbps;
    UDP: 788 Mbps
    WireGuard VPN Throughput • 123.4 Mbps
    Concurrent Session 150,000
    New Sessions /Second 2,600
    NAT (Static IP) • Upload: 945.77 Mbps
    • Download: 938.79 Mbps
    • Bi-Directional: 1808.29 Mbps
    NAT(DHCP) • Upload: 945.54 Mbps
    • Download: 945.66 Mbps
    • Bi-Directional: 1802.77 Mbps
    NAT(PPPoE) • Upload: 939.71Mbps
    • Download: 939.43 Mbps
    • Bi-Directional: 1788.54 Mbps
    NAT (L2TP) • Upload: 815.55 Mbps
    • Download: 835.59 Mbps
    • Bi-Directional: 903.13 Mbps
    NAT (PPTP) • Upload: 813.23 Mbps
    • Download: 850.91 Mbps
    • Bi-Directional: 894.41 Mbps
    IPsec VPN Throughput • ESP-SHA1-AES256: 259.78 Mbps
    • ESP-SHA256-AES256: 260.81 Mbps
    • ESP-SHA384-AES256: 37.65 Mbps
    • ESP-SHA512-AES256: 38.32 Mbps
    OpenVPN • 21.70 Mbps
    L2TP VPN Throughput • Unencrypted: 640.99 Mbps
    • Encrypted: 77.31 Mbps
    PPTP VPN Throughput • Unencrypted: 759.55 Mbps
    • Encrypted: 75.80 Mbps
    SSL VPN Throughput –
    66 Byte Packet Forwarding Rate • Upload/Download: 954.50 Mbps
    • Bi-Directional: 1130.00 Mbps
    1,518 Byte Packet forwarding rate • Upload/Download: 997.50 Mbps
    • Bi-Directional: 1965.00 Mbps
    BASIC FUNCTIONS
    WAN Connection Type • Static
    • Dynamic IP
    • PPPoE(supports MRU Configuration)
    • PPTP
    • L2TP
    MAC Clone Modify WAN/LAN MAC Address†
    DHCP • DHCP Server
    • DHCPv6 PD Server (only in Standalone Mode)
    • DHCP Options Customization
    • DHCP Address Reservation
    • Multi-IP Interfaces
    • Multi-Net DHCP
    IPv6 StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
    VLAN 802.1Q VLAN
    IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
    Advanced Features
    Advanced Routing • Static Routing
    • Policy Routing
    • RIP§
    • OSPF§
    Bandwidth Control IP-based Bandwidth Control
    Load Balance • Intelligent Load Balance
    • Application Optimized Routing
    • Link Backup (Timing, Failover)
    • Online Detection
    NAT • One-to-One NAT
    • Multi-Net NAT
    • Port Forwarding
    • Port Triggering§
    • NAT-DMZ
    • FTP/H.323/SIP/IPSec/PPTP ALG
    • UPnP
    Session Limit IP-based Session Limit
    VPN
    IPsec VPN • 20 IPSec VPN Tunnels
    • LAN-to-LAN, Client-to-LAN
    • Main, Aggressive Negotiation Mode
    • DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 • Encryption Algorithm
    • IPsec Failover
    • IKE v1/v2
    • MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm
    • NAT Traversal (NAT-T)
    • Dead Peer Detection (DPD)
    • Perfect Forward Secrecy (PFS)
    PPTP VPN • PPTP VPN Server
    • PPTP VPN Client (10) **
    • 16 Tunnels
    • PPTP with MPPE Encryption
    L2TP VPN • L2TP VPN Server
    • L2TP VPN Client (10) **
    • 16 Tunnels
    • L2TP over IPSec
    OpenVPN • OpenVPN Server
    • OpenVPN Client (10)§
    • 16 OpenVPN Tunnels
    • “Certificate + Account” Mode
    • Full Mode
    WireGuard VPN • 20 Tunnels
    AUTHENTICATION
    Web Authentication • No Authentication
    • Simple Password*
    • Hotspot（Local User / Voucher*/ SMS*/ Radius*）
    • External Radius Sever
    • External Portal Sever*
    • LDAP§
    Management Features
    Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
    Centralized Management • Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
    Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
    Maintenance • Web Management Interface
    • Remote Management
    • Export & Import Configuration
    • SNMP v1/v2c/v3
    • Diagnostics (Ping & Traceroute)§
    • NTP Synchronize§
    • Port Mirroring
    • CLI (only in Standalone Mode)
    • Syslog Support
    Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
    Management Features • Automatic Device Discovery
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    • Captive Portal Configuration
    OTHERS
    Certification CE, FCC, RoHS
    Package Content • ER605
    • Power Adapter
    • RJ-45 Ethernet Cable
    • Quick Installation Guide
    System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
    Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
    • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
    • Operating Humidity: 10% to 90% non-condensing
    • Storage Humidity: 5% to 90% non-condensing
